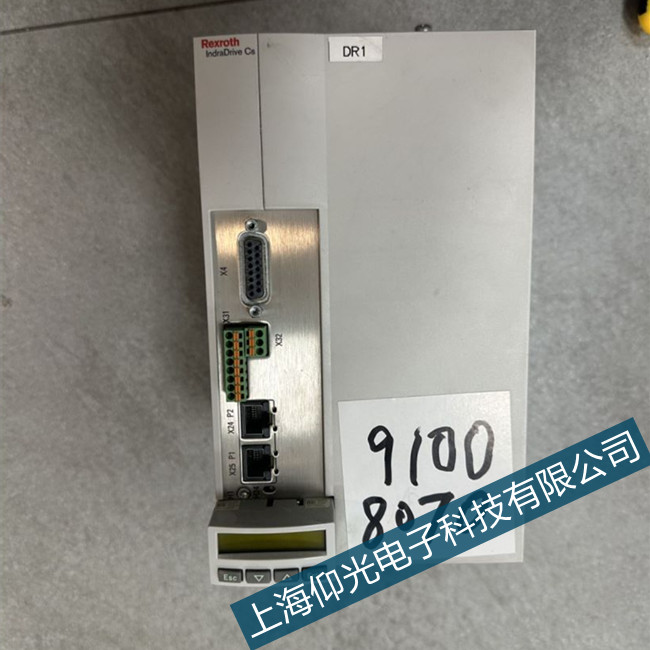

力士樂伺服控制器維修環路控制故障比例閥放大器修理

發布者：hp 來源：上海仰光電子科技有限公司發布時間：2024-4-25

力士樂伺服控制器維修環路控制故障：

D900 D9 Command Automatic Loop Control

D900 D9指令自動環路控制

Description:故障描述：

The start of this command means that an automatic control loop setting is executed in the drive if the drive is in the loop at command start, i.e., the drive enable signal is applied.此命令的啟動意味著，如果驅動器在命令啟動時處于環路中，則在驅動器中執行自動控制環路設置，即應用驅動器啟用信號。

⇒ The start of this command can trigger a movement if drive enable and drive start are at the drive.如果驅動器啟用和驅動器啟動在驅動器上，則此命令的啟動可觸發移動。

⇒ The drive conducts autonomous movements within the range defined by both limits.

驅動器在兩個限制規定的范圍內進行自主運動。

⇒ The E-stop sequence function and the travel range limit switch must be guaranteed and checked.必須保證并檢查急停順序功能和行程范圍限位開關。

See also Function description:"Safety Instructions"

另請參閱功能描述：“安全說明”

⇒ During command D9, the drive autonomously conducts motions, i.e., without external command value.在命令D9期間，驅動器自動進行運動，即沒有外部命令值。

Note: Under some circumstances, errors can also occur while the command is being executed. These are then signalled with pertinent messages.

注意：在某些情況下，執行命令時也可能發生錯誤。然后用信號通知這些相關信息。

D901 start only with RF

D902 motor feedback not valid

D903 inertia detection failed

D904 gain adjustment failed

D905 wrong position range

D906 position range exceeded

D901僅使用RF啟動

D902電機反饋無效

D903慣性檢測失敗

D904增益調整失敗
